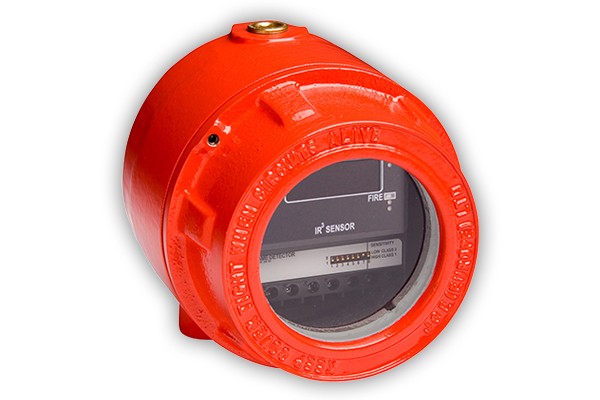

(IR2) Dual infrared flame detector
Dual infrared (IR2) flame detector Operating range 0.75μm…2.7μm
Alarm relay and failure relay – High immunity to light interference – High smoke, vapor and dust tolerance – Programmable response time and sensitivity
- Description
Description
*Features*
Outputs: proportional 4-20mA
Self test –
Operating voltage 14V…30V DC – Stand-by consumption 8mA
Operating temperature -10°C…+55°C
EXD – IP66 – Aluminum casing
Dimensions (L x H x D) 146 x 150 x 137mm
SIL2, ATEX, EN 54-10
