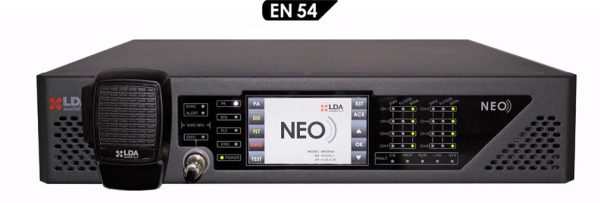

NEO 8060 Compact Public Address and Voice Alarm System
LDA NEO 8060 is a compact EN 54-16 certified PA/VA system that ensures a ensures a fast, safe and controlled emergency evacuation.
NEO represents a cost-effective voice evacuation and public address system due to its cutting-edge *Features*, excellent audio quality and flexibility in just 2U: 8 class D amlifiers, 5 audio inputs, 7×8 audio matrix (39×1024 digital), touch screen, Cobranet audio, etc.
With the NEO-Configurator software (included), it is possible to configure the equipment remotely and create events to perform actions in the system triggered by conditions of: input level, date&time, UDP command, a GPIO or button from MPS microphone.
- Description
Description
*Features*
Redundant controller.
5 audio inputs
8 class D amplifiers for 100V/70 V lines: − 8 class D amplifiers of 120 W per channel.
Audio Matrix 8×8 (up to 1024 zones).
8 pre‑amp outputs.
ACSI port
EN 54‑16 and EN‑60849 certified.
Detection and indication of failure in all emergency functions.
Integration with fire alarm control panels.
Pre‑recorded evacuation messages.
Phased evacuation.
Manual control of emergency states with access control.
Recording output in emergency state.
Emergency log.
Loudspeaker line supervision.
A+B connection (16 lines).
Backup amplifier connection: 7+1 (120 W channels)
