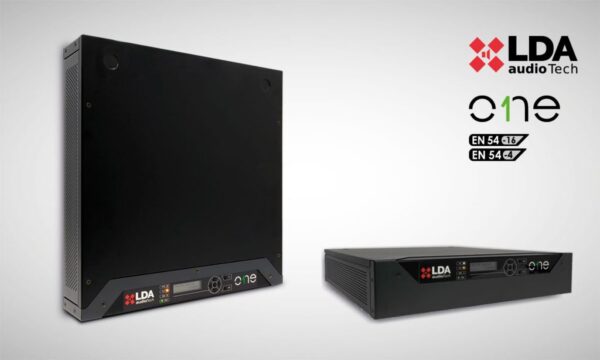

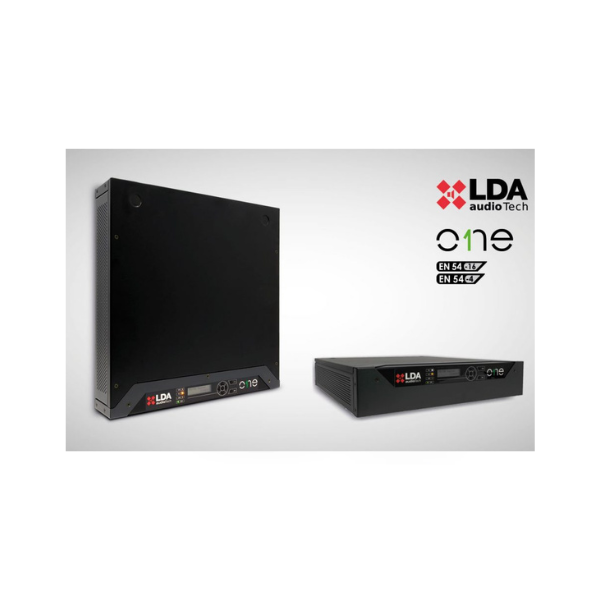

ONE Compact Public Address and Voice Alarm System
The LDA ONE500 is a compact EN 54-16 certified public address and voice alarm system that ensures a fast, safe and controlled emergency evacuation.
ONE is the most versatile and cost effective PA/VA system, thanks to its cutting-edge *Features*, excellent audio quality and flexibility in minimum space. It has 2 class D amplifiers, 6 zones, 3 audio inputs, 6×6 audio matrix, DSP and LCD display.
The system can be configured without software or PC, thanks to the Plug Set mode for PA/VA.
Audio inputs and automatic mixing allow high versatility for PA use in small installations.
ONE has an EN 54-4 battery charger and can operate with one 12V battery. This feature and its advanced power saving control reduce maintenance costs to the maximum.
A Wall & Rack innovative design makes ONE suitable for wall mounting and rack integration.
- Description
Description
*Features*
3 audio inputs.
Up to 8MBPS-8Z multi zone microphones or VAP-1 panels connected with CAT5 UTP cable.
2 class D amplifiers with two configurations for 100V/70V lines up to 500W.
Digital audio matrix 6×6, expandable.
4 pre-amp outputs for external PA amplifiers connection.
DSP: 3/7-band input/output parametric equalizer, loudness, LDA sound enhancer, independent volume control per each input and output master.
Access control by LCD display.
Control for up to 16 LDA AT6 attenuators.
8+2 GPIO ports, supervised for integration with Fire Alarm Control Panel.
